Description

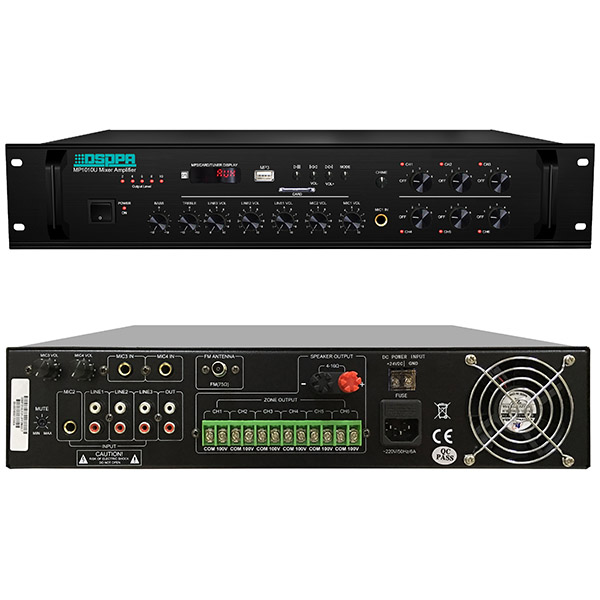

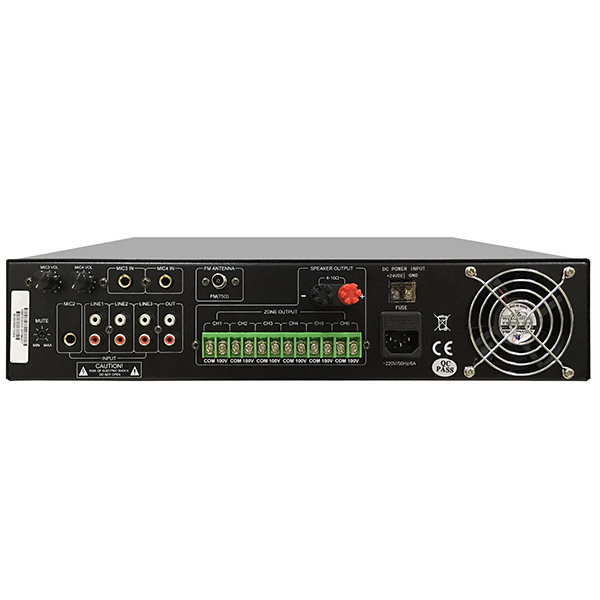

This mixing amplifier is rated at 350W. 100V and 4-16 Ω speaker output are provided. There are 3 unbalanced microphones inputs and 3 aux inputs. Bass and treble controls are provided. This amplifier can be applied to different occasions, such as supermarket, classroom, etc. Extensive protection from short-circuit, overload and high temp is ensured. Automatic cooling system ensures the extreme quiet sound system. DSPPA has 6 zone amp and other mixer amp for sale, contact us now.
| SPECIFICATION | |
| Model | MP1010U |
| Rated output | 350W |
| Speaker output | 70V, 100V & 4-16 Ω, |
| Input sensitivity | MIC: 3.0mV(±0.5mV) LINE: 300mV(±50mV) |
| Frequency response | 80Hz-16kHz (±3dB) |
| Distortion | Less than 1% (at 1kHz, 1/3 rated output voltage) |
| The ratio of signal to noise | MIC: more than 71dB LINE: more than 85dB |
| Protection | DC voltage; overload; short-circuit. |
| Power requirements | AC 220V-240V/50Hz-60Hz |
| Power consumption | 650W |
| Outer Packing Size (mm) | (L×W×H)520×430×195 |
| Unit Size (mm) | (L×W×H)418×338×88 |
| Gross weight | 17kg |
| Net weight | 16kg |
