Description

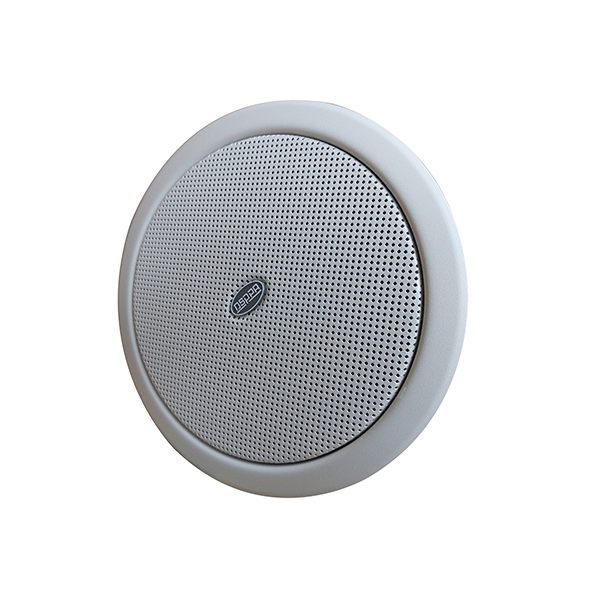

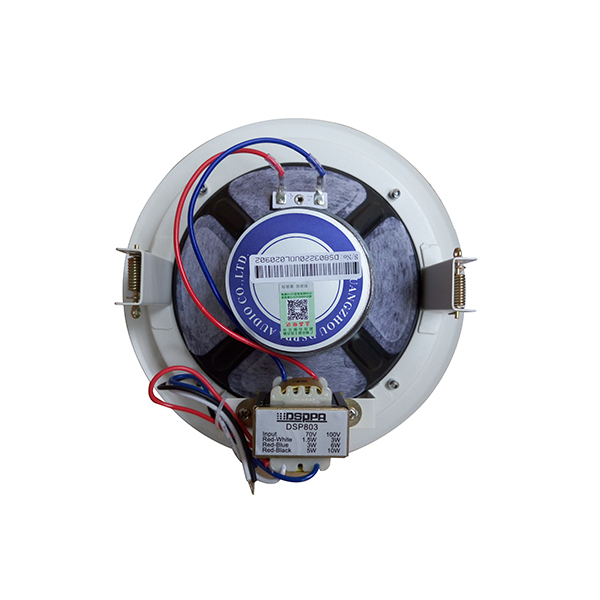

DSP803 is a ceiling speaker with built-in 70v/100v transformer. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 6.5” speaker driver is designed of wide frequency response 80Hz ~ 14kHz. It’s made of high quality steel material, which ensures long-term durability, and will never be out of shape or fading; spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, clear and sonorous sound.
| SPECIFICATION | |
| Model | DSP803 |
| Full-Range | 6.5” X 1 |
| Rated Power | 10W |
| Line Input | 70/100V |
| Sensitivity(1m,1w) | 92±2db |
| Max Spl(1m) | 102±2db |
| Freq.Resp | 80Hz~14khz |
| Cutout Size | Ø178 – Ø190mm |
| Demensions(H X W X L) | 80 X Ø210mm |
| Weight | 1.1kg |
