Description
Introduction

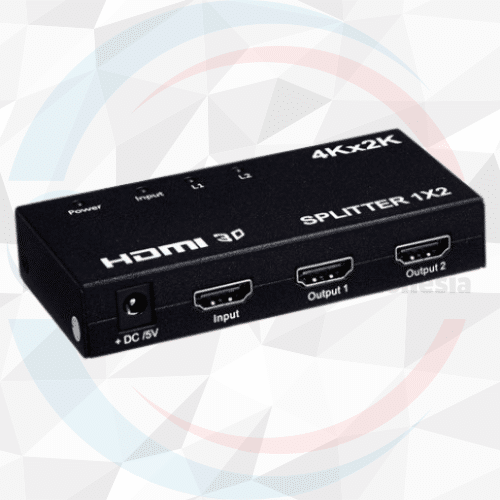

The 1×2 HDMI Splitters uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition, it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this HDMI splitter can be up to 3840×2160/30Hz
FEATURES
1.Support HDMI 1.4b
2. Support Full 3D
3. Support HDMI resolution up to 3840×2160/30Hz
4. Support the max baud rate of 3.4G and max bandwidth of 340Mhz
5. Support deep color 8/10/12bit
6. Support input up to 8 meters AWG26 HDMI standard cable length, output up to 8 meters AWG26 HDMI standard cable length
7. Displaying single source, multi-output high- definition signal source from DVD player A/V receiver, set-top box
8. Include 5V/1A power Adapter
SPECIFICATIONS
| HDMI version | HDMI 1.4b |
| HDMI resolution | up to 3840×2160/30Hz |
| Support video format | 8/10/12bit Deep Color |
| Support audio format | DTS-HD/ Dolby-True HD/DTS/ DOlby-AC3/DSD |
| Max bandwidth | 340 MHz |
| Max baud rate | 3.4 Gbps |
| Input cable distance | 8m AWG26 HDMI standard cable |
| Output cable distance | 8m AWG26 HDMI standard cable |
| HDMI Input | 1 HDMI |
| HDMI Output | 2 HDMI |
| Max working current | 500mA |
| Specification of power adapter | AC (50HZ, 60HZ) :100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55°C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension | 105x5x20 (mm) |
| Weight | 120g |
